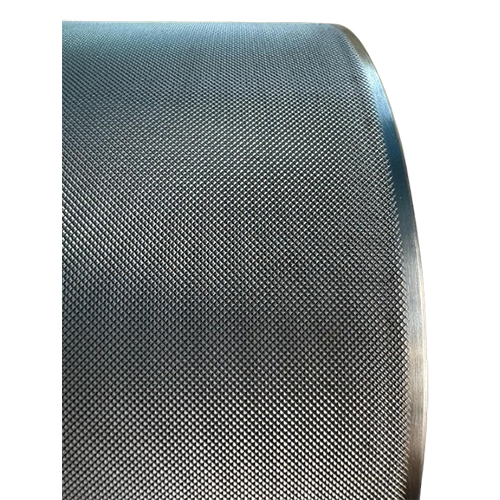

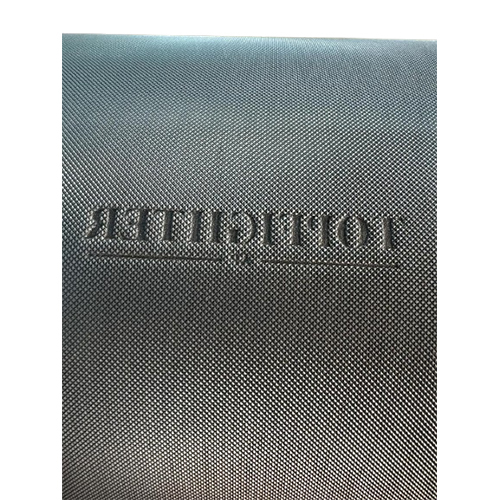

Diamond Satin Emboss Roller

Price 95000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Diamond Satin Emboss Roller Specification

Capacity
1 Pcs/hr

Diameter
215 Millimeter (mm)

Usage
Textile finishing (satin effect on fabrics), Rexine OR leather embossing ,Paper & tissue embossing, Plastic film & lamination industry Decorative sheet manufacturing

Material
Steel

Size
BL 1830 X 215 MM

Dimensions
1830 Millimeter (mm)

Product Type
Satin Emboss Roller

Weight
200 Kilograms (kg)

Technique
Satin Embossing Technique

Standard
Industry Standard

Color
Silver

Width
1830 Millimeter (mm)

Length
1830 Millimeter (mm)

Belt Width
1830 Millimeter (mm)

Feature
Corrosion Resistance, Precise Patterning, Durable Finish

Hardness
50-60 HRC

Shape
Cylindrical Roller

Surface Treatment
Hard Chrome Plating

Roller Length
300 mm to 3800 mm

Application
Textile, Leather, and Plastic Industries

Weight
Customized as per dimension

Working Temperature
Up to 200C

Color
Silver/Grey

Tolerance
0.03 mm

Pattern Type
Diamond Finish

Diamond Satin Emboss Roller Trade Information

Minimum Order Quantity
1 Unit

FOB Port
INDIA

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
25 Units Per Month

Delivery Time
1 Months

Sample Available
Yes

Packaging Details
Standard Packing

Main Domestic Market
All India

About Diamond Satin Emboss Roller

Satin Emboss Roller Technical Specification

General Description

A Satin Emboss Roller is a precision-engineered cylindrical roller designed to create smooth satin finish patterns on materials like fabric, paper, plastic film, or leather through controlled pressure and temperature.

Technical Specifications

Parameter	Specification
Material	Alloy Steel / Mild Steel / Stainless Steel
Surface Treatment	Hard Chrome Plated / Satin Finish Engraving
Hardness	5870 HRC (after heat treatment)
Roller Diameter	50 mm to 500 mm (customizable)
Face Length	300 mm to 4000 mm
Surface Roughness	Ra 0.01 0.05 m
Concentricity	0.02 mm
Engraving Type	Satin / Matte / Micro-texture Pattern
Engraving Depth	10200 microns
Shaft Type	Fixed / Removable / Bearing Mounted
Balancing	Dynamic Balancing (G2.5 / G6.3 Grade)
Coating Thickness	20100 microns (Hard Chrome)
Temperature Resistance	Up to 200300C (depending on application)
Speed Capacity	Up to 500 RPM
Load Capacity	As per machine design

Key Features

High precision engraving for uniform satin finish
Excellent wear and abrasion resistance due to chrome plating
Smooth surface ensures consistent texture transfer
Long operational life with minimal maintenance
Custom design available as per drawing / sample

Applications

Textile finishing (satin effect on fabrics)
Rexine / leather embossing
Paper & tissue embossing
Plastic film & lamination industry
Decorative sheet manufacturing

Working Principle

The roller surface contains a micro-engraved satin pattern
Under pressure and heat, the pattern is transferred onto the material surface
Ensures consistent texture, depth, and finish quality across production

Optional Customization

Mirror polish / matte / dual finish rollers
Heating (oil / electric) rollers
Rubber-coated backup rollers
Laser / chemical engraving

Discover the rare Diamond Satin Emboss Roller-crafted with masterful precision and set apart by its grand design. This decorated cylindrical roller features a sophisticated diamond finish and a durable hard chrome plating, ensuring supreme corrosion resistance and a durable, affordable solution. Designed for instant checkout, it operates at up to 200C, meeting stringent industry standards. Ideal for textile, leather, and plastic applications, it boasts customized dimensions, high output capacity, and a durable silver/grey finish-making it an indispensable, cost-effective addition to industrial operations.

Exceptional Versatility and Benefits

The Diamond Satin Emboss Roller excels in textile, leather, and plastic industries with its premium steel body and diamond-patterned surface. Its precise patterning capability, combined with high hardness (50-60 HRC) and resistance to corrosion, offers significant advantages such as enhanced durability, excellent repeatability, and reliable performance in demanding environments. This roller is ideal for those seeking grand results and a masterful, long-lasting impression on treated surfaces.

Packaging, Supply, and Certifications Assured

Each Diamond Satin Emboss Roller arrives with secure, protective packaging to ensure grand condition upon shipment. Our robust supply ability guarantees timely order completion and steady availability, meeting industry demand efficiently. The product is manufactured to current industry standards and supported by relevant certifications, reassuring customers of quality and compliance from order placement to arrival. Choose us for reliable service and decorated delivery of premium rollers tailored to your requirements.

FAQ's of Diamond Satin Emboss Roller:

Q: How does the Diamond Satin Emboss Roller enhance material surface quality?

A: By utilizing satin embossing with a diamond finish, this roller imparts precise, decorative patterns, elevating the surface quality and appearance of textiles, leather, and plastics.

Q: What is the process for ordering customized dimensions of the roller?

A: Customers can specify their required dimensions during the inquiry or order stage. The roller is manufactured accordingly to meet individual production requirements and deliver a tailored fit.

Q: Where can this emboss roller be effectively utilized?

A: It is particularly effective in textile, leather, and plastic industries, providing high-output patterning and a masterful finish to a variety of industrial materials.

Q: What are the main benefits of its hard chrome plating surface treatment?

A: The hard chrome plating ensures enhanced resistance to corrosion, increases longevity, and maintains the roller's decorated appearance and functional integrity in harsh operating conditions.

Q: When can customers expect shipment and arrival after order completion?

A: Orders are processed promptly after confirmation, with secure packaging and timely shipment. Arrival depends on logistics and location, but we prioritize swift delivery to minimize downtime for our clients.
